7M30000019晶振拓展无线收发器模行业的新蓝海

文章出处：//www.michaelogg.com/ 责任编辑：加科电子 人气：- 发表时间：2022-11-03 10:05【大中小】

无线收发器模块主要用于通过单片机控制无线收发器数据,要求满足长传输距离,出色的墙壁穿透能力,小尺寸,高灵敏度,低误码率,高数据传输稳定性,超低睡眠功耗等要求,随着当前的智能家居产品,物联网已经进入人们的生活,无线产品的应用领域非常广泛,si4438无线收发器支持25~30MHz范围内的外部贴片晶振输入,默认情况下SI4438是一个30MHz无源,芯片包含一个总容量为11pF的内部晶体负载电容,节省了外部设备。

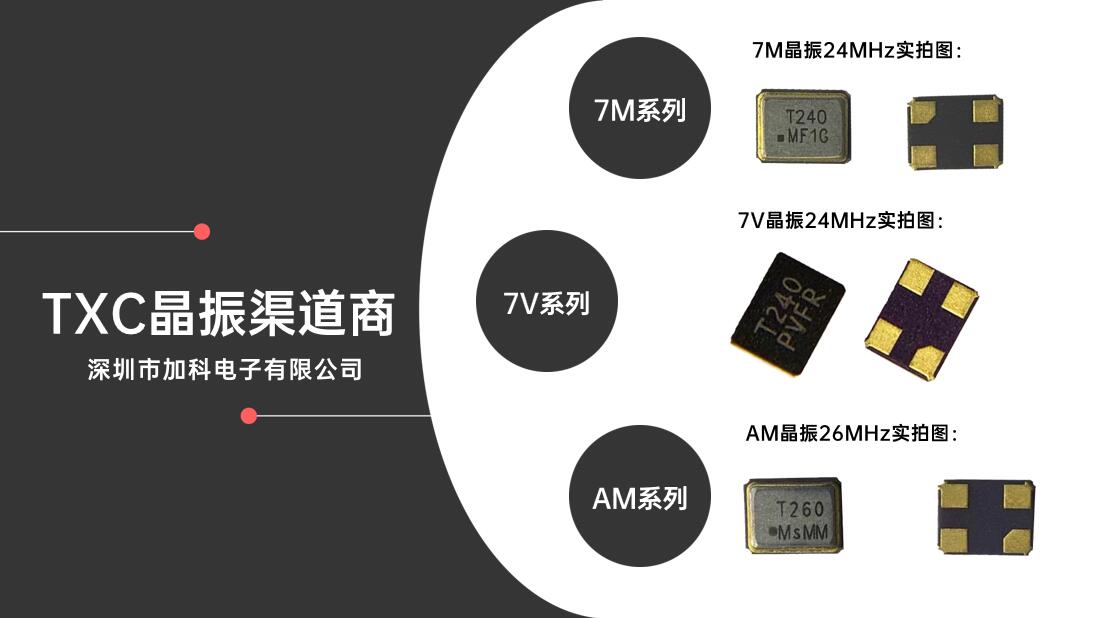

TXC晶振

无线收发器模块中使用的晶振有多种型号可选,晶振的厂家非常之多,如NDK晶振,爱普生EPSON晶振,京瓷Kyocerea晶振,TXC晶振,,经验来看主要需考虑品牌频率容差,负载电容,TXC晶振（台湾晶技）是一家专业从事晶振的生厂商,拥有长年积累经验,实现精微化,高精度,高品质的综合技术。

7M金属面系列


料号 频率 精度 负载电容 工业温度
7M10072001 10 MHz ±7ppm 9pF -40°C ~ 105°C
7M12000001 12 MHz ±30ppm 18pF -20°C ~ 70°C
7M12000007 12 MHz ±20ppm 12pF -40°C ~ 85°C
7M12000015 12 MHz ±30ppm 10pF -40°C ~ 85°C
7M12000020 12 MHz ±30ppm 8pF -20°C ~ 70°C
7M12000039 12 MHz ±20ppm 18pF -30°C ~ 85°C
7M12000048 12 MHz ±30ppm 12pF -20°C ~ 70°C
7M12000057 12 MHz ±20ppm 15pF -10°C ~ 60°C
7M12000100 12 MHz ±30ppm 18pF -40°C ~ 85°C
7M12000146 12 MHz ±10ppm 10pF -20°C ~ 70°C
7M12000164 12 MHz ±30ppm 20pF -40°C ~ 85°C
7M12020001 12 MHz ±30ppm 18pF -20°C ~ 70°C
7M12020002 12 MHz ±20ppm 18pF -40°C ~ 85°C
7M12020003 12 MHz ±30ppm 10pF -20°C ~ 70°C
7M12070003 12 MHz ±30ppm 12pF -20°C ~ 70°C
7M12070015 12 MHz ±10ppm 10pF -20°C ~ 70°C
7M12070019 12 MHz ±30ppm 18pF -30°C ~ 85°C
7M12070021 12 MHz ±50ppm 10pF -20°C ~ 70°C
7M12070027 12 MHz ±30ppm 18pF -40°C ~ 85°C
7M12077001 12 MHz ±20ppm 18pF -40°C ~ 105°C
7M12200002 12.288 MHz ±15ppm 8pF -10°C ~ 70°C
7M12270003 12.288 MHz ±10ppm 10pF -20°C ~ 70°C
7M13000140 13 MHz ±10ppm 10pF -20°C ~ 70°C
7M13500011 13.56 MHz ±20ppm 16pF -20°C ~ 75°C
7M13570001 13.56 MHz ±10ppm 10pF -20°C ~ 70°C
7M13800004 13.824 MHz ±10ppm 20pF -20°C ~ 70°C
7M14700001 14.7457 MHz ±30ppm 10pF -40°C ~ 85°C
7M16000004 16 MHz ±30ppm 20pF -20°C ~ 90°C
7M16000017 16 MHz ±10ppm 9pF -20°C ~ 75°C
7M16000024 16 MHz ±10ppm 10pF -20°C ~ 75°C
7M16000025 16 MHz ±10ppm 20pF -20°C ~ 70°C
7M16000032 16 MHz ±10ppm 12pF 0°C ~ 85°C
7M16000035 16 MHz ±10ppm 15pF -20°C ~ 70°C
7M16000099 16 MHz ±10ppm 9pF -20°C ~ 85°C
7M16000277 16 MHz ±10ppm 16pF -20°C ~ 70°C
7M16000348 16 MHz ±50ppm 20pF -20°C ~ 70°C
7M16030005 16 MHz ±30ppm 16pF -40°C ~ 85°C
7M16070011 16 MHz ±20ppm 12pF -40°C ~ 85°C
7M16070022 16 MHz ±10ppm 9pF -20°C ~ 85°C
7M16077007 16 MHz ±10ppm 8pF -20°C ~ 70°C
7M16090001 16 MHz ±10ppm 9pF -40°C ~ 85°C
7M16600001 16.66667 MHz ±30ppm 12pF -40°C ~ 85°C
7M16805001 16.8 MHz ±15ppm 9pF -40°C ~ 70°C
7M18470004 18.432 MHz ±50ppm 18pF -40°C ~ 85°C
7M19200005 19.2 MHz ±10ppm 7pF -30°C ~ 85°C
7M19270004 19.2 MHz ±30ppm 18pF -20°C ~ 70°C
7M19270012 19.2 MHz ±10ppm 9pF -25°C ~ 70°C
7M19272001 19.2 MHz ±7ppm 9pF -40°C ~ 105°C
7M19472001 19.44 MHz ±7ppm 9pF -40°C ~ 105°C
7M20000022 20 MHz ±7ppm 16pF 0°C ~ 85°C
7M20000029 20 MHz ±7ppm 16pF 0°C ~ 95°C
7M20000089 20 MHz ±30ppm 18pF -20°C ~ 70°C
7M20020001 20 MHz ±10ppm 18pF -30°C ~ 85°C
7M20020003 20 MHz ±30ppm 12pF -20°C ~ 70°C
7M20070002 20 MHz ±7ppm 16pF 0°C ~ 85°C
7M20080001 20 MHz ±7ppm 16pF 0°C ~ 90°C
7M20700001 20.736 MHz ±10ppm 10pF -20°C ~ 70°C
7M24000018 24 MHz ±30ppm 16pF -40°C ~ 85°C
7M24000020 24 MHz ±10ppm 18pF -40°C ~ 85°C
7M24000021 24 MHz ±30ppm 12pF -20°C ~ 70°C
7M24000022 24 MHz ±10ppm 10pF -30°C ~ 85°C
7M24000049 24 MHz ±20ppm 18pF -20°C ~ 70°C
7M24000067 24 MHz ±10ppm 10pF -10°C ~ 70°C
7M24000110 24 MHz ±30ppm 10pF -10°C ~ 70°C
7M24000138 24 MHz ±30ppm 18pF -40°C ~ 85°C
7M24000174 24 MHz ±10ppm 16pF -20°C ~ 70°C
7M24000192 24 MHz ±10ppm 12pF -20°C ~ 70°C
7M24000218 24 MHz ±8ppm 8pF -20°C ~ 70°C
7M24005003 24 MHz ±10ppm 10pF -40°C ~ 85°C
7M24020001 24 MHz ±20ppm 18pF -40°C ~ 85°C
7M24020002 24 MHz ±30ppm 18pF -40°C ~ 85°C
7M24020005 24 MHz ±30ppm 12pF -40°C ~ 85°C
7M24070002 24 MHz ±10ppm 10pF -20°C ~ 80°C
7M24070016 24 MHz ±10ppm 10pF -30°C ~ 70°C
7M24070017 24 MHz ±15ppm 18pF -10°C ~ 85°C
7M24070019 24 MHz ±10ppm 10pF -20°C ~ 70°C
7M24070029 24 MHz ±10ppm 9pF -40°C ~ 85°C
7M24070038 24 MHz ±10ppm 18pF -40°C ~ 85°C
7M24070042 24 MHz ±10ppm 10pF 0°C ~ 70°C
7M24075003 24 MHz ±10ppm 18pF -40°C ~ 85°C
7M24077005 24 MHz ±30ppm 18pF -20°C ~ 70°C
7M24077007 24 MHz ±20ppm 18pF -40°C ~ 85°C
7M24085001 24 MHz ±10ppm 8pF -30°C ~ 85°C
7M24570001 24.576 MHz ±30ppm 18pF -20°C ~ 70°C
7M24770001 24.75 MHz ±20ppm 20pF -20°C ~ 70°C
7M25000003 25 MHz ±10ppm 12pF -20°C ~ 70°C
7M25000013 25 MHz ±10ppm 10pF -20°C ~ 75°C
7M25000014 25 MHz ±10ppm 18pF -10°C ~ 70°C
7M25000016 25 MHz ±25ppm 20pF -20°C ~ 70°C
7M25000018 25 MHz ±30ppm 12pF -40°C ~ 85°C
7M25000019 25 MHz ±25ppm 20pF -10°C ~ 70°C
7M25000032 25 MHz ±10ppm 10pF -20°C ~ 90°C
7M25000034 25 MHz ±30ppm 16pF -10°C ~ 70°C
7M25000038 25 MHz ±10ppm 20pF -40°C ~ 85°C
7M25000041 25 MHz ±20ppm 15pF -30°C ~ 80°C
7M25000046 25 MHz ±10ppm 18pF -30°C ~ 85°C
7M25000052 25 MHz ±20ppm 16pF -20°C ~ 70°C
7M25000055 25 MHz ±25ppm 18pF -20°C ~ 70°C
7M25000080 25 MHz ±10ppm 18pF -30°C ~ 85°C
7M25000150 25 MHz ±20ppm 18pF -40°C ~ 85°C
7M25000169 25 MHz ±30ppm 20pF -20°C ~ 70°C
7M25000196 25 MHz ±25ppm 20pF -20°C ~ 85°C
7M25020002 25 MHz ±20ppm 10pF 0°C ~ 80°C
7M25020004 25 MHz ±30ppm 20pF 0°C ~ 85°C
7M25020005 25 MHz ±30ppm 10pF 0°C ~ 85°C
7M25020008 25 MHz ±20ppm 20pF -20°C ~ 70°C
7M25020009 25 MHz ±25ppm 12pF -40°C ~ 85°C
7M25020011 25 MHz ±30ppm 18pF 0°C ~ 70°C
7M25020012 25 MHz ±10ppm 10pF -20°C ~ 70°C
7M25020015 25 MHz ±20ppm 20pF -20°C ~ 100°C
7M25020017 25 MHz ±30ppm 12pF -20°C ~ 70°C
7M25030004 25 MHz ±10ppm 18pF -40°C ~ 85°C
7M25070006 25 MHz ±30ppm 18pF -20°C ~ 70°C
7M25070010 25 MHz ±30ppm 18pF -20°C ~ 70°C
7M25070014 25 MHz ±20ppm 18pF -10°C ~ 85°C
7M25070018 25 MHz ±10ppm 18pF -10°C ~ 70°C
7M25070025 25 MHz ±10ppm 10pF -20°C ~ 70°C
7M25070027 25 MHz ±20ppm 19pF -40°C ~ 85°C
7M25070033 25 MHz ±30ppm 18pF -40°C ~ 85°C
7M25070034 25 MHz ±20ppm 8pF -40°C ~ 85°C
7M25070039 25 MHz ±25ppm 10pF -40°C ~ 85°C
7M25070060 25 MHz ±30ppm 18pF -20°C ~ 70°C
7M25070063 25 MHz ±10ppm 12pF -10°C ~ 95°C
7M25070073 25 MHz ±15ppm 10pF -40°C ~ 85°C
7M25070075 25 MHz ±10ppm 18pF -20°C ~ 70°C
7M25070080 25 MHz ±30ppm 9pF -20°C ~ 70°C
7M25072001 25 MHz ±7ppm 9pF -40°C ~ 105°C
7M25077010 25 MHz ±20ppm 18pF -40°C ~ 85°C
7M25077011 25 MHz ±20ppm 10pF -10°C ~ 95°C
7M25080001 20 MHz ±7ppm 16pF 0°C ~ 90°C
7M25080003 25 MHz ±10ppm 12pF 0°C ~ 90°C
7M25090002 25 MHz ±10ppm 18pF -40°C ~ 85°C
7M25090005 25 MHz ±10ppm 8pF -20°C ~ 85°C
7M26000019 26 MHz ±10ppm 12pF -30°C ~ 85°C
7M26000028 26 MHz ±10ppm 7.5pF -20°C ~ 75°C
7M26000038 26 MHz ±10ppm 10pF -20°C ~ 75°C
7M26000055 26 MHz ±10ppm 10pF -30°C ~ 85°C
7M26070003 26 MHz ±30ppm 10pF -40°C ~ 85°C
7M26070013 26 MHz ±30ppm 18pF -40°C ~ 85°C
7M27000008 27 MHz ±10ppm 10pF -20°C ~ 70°C
7M27000010 27 MHz ±10ppm 12pF -10°C ~ 70°C
7M27000014 27 MHz ±30ppm 16pF -20°C ~ 75°C
7M27000020 27 MHz ±10ppm 18pF 0°C ~ 85°C
7M27000021 27 MHz ±10ppm 10pF -40°C ~ 85°C
7M27000050 27 MHz ±10ppm 10pF -20°C ~ 70°C
7M27000149 27 MHz ±30ppm 8.5pF -20°C ~ 70°C
7M27070006 27 MHz ±30ppm 18pF -20°C ~ 70°C
7M27070007 27 MHz ±30ppm 18pF -20°C ~ 70°C
7M27070009 27 MHz ±20ppm 8pF -20°C ~ 70°C
7M27070010 27 MHz ±30ppm 12pF -20°C ~ 70°C
7M27072001 27 MHz ±7ppm 9pF -40°C ~ 105°C
7M27077003 27 MHz ±30ppm 22pF -40°C ~ 85°C
7M27100001 27.12 MHz ±50ppm 12pF -40°C ~ 85°C
7M27100006 27.12 MHz ±25ppm 18pF -10°C ~ 70°C
7M27100008 27.12 MHz ±15ppm 18pF -10°C ~ 70°C
7M27100009 27.12 MHz ±10ppm 10pF -20°C ~ 70°C
7M27100019 27.12 MHz ±30ppm 12pF -20°C ~ 70°C
7M27120001 27.12 MHz ±30ppm 10pF -20°C ~ 70°C
7M27170001 27.12 MHz ±10ppm 10pF -20°C ~ 70°C
7M28200001 28.224 MHz ±30ppm 18pF -20°C ~ 70°C
7M30000019 30 MHz ±30ppm 8pF -30°C ~ 85°C
7M30772001 30.72 MHz ±7ppm 9pF -40°C ~ 105°C
7M30905002 30.9 MHz ±15ppm 16pF -40°C ~ 70°C
7M31270003 31.25 MHz ±25ppm 12pF -40°C ~ 85°C
7M32000001 32 MHz ±10ppm 18pF -30°C ~ 85°C
7M32000010 32 MHz ±10ppm 9pF -40°C ~ 85°C
7M32000035 32 MHz ±10ppm 12pF -20°C ~ 70°C
7M32020001 32 MHz ±15ppm 8pF -10°C ~ 75°C
7M32030001 32 MHz ±10ppm 10pF -20°C ~ 70°C
7M32070002 32 MHz ±10ppm 10pF -20°C ~ 70°C
7M32070005 32 MHz ±10ppm 12pF -40°C ~ 85°C
7M32070007 32 MHz ±10ppm 12pF -40°C ~ 85°C
7M32070014 32 MHz ±10ppm 8pF -40°C ~ 85°C
7M38070001 38 MHz ±20ppm 12pF -40°C ~ 85°C
7M38400010 38.4 MHz ±10ppm 10pF -40°C ~ 85°C
7M38400039 38.4 MHz ±10ppm 10pF -30°C ~ 85°C
7M38872001 38.88 MHz ±7ppm 9pF -40°C ~ 105°C
7M40000002 40 MHz ±10ppm 12pF 0°C ~ 85°C
7M40000005 40 MHz ±10ppm 10pF 0°C ~ 85°C
7M40000006 40 MHz ±10ppm 9pF -20°C ~ 70°C
7M40000009 40 MHz ±10ppm 12pF 0°C ~ 85°C
7M40000010 40 MHz ±10ppm 12pF -30°C ~ 85°C
7M40000034 40 MHz ±10ppm 9pF -20°C ~ 85°C
7M40000049 40 MHz ±10ppm 10pF -30°C ~ 85°C
7M40000074 40 MHz ±10ppm 12pF -40°C ~ 85°C
7M40000088 40 MHz ±10ppm 12pF 0°C ~ 90°C
7M40000129 40 MHz ±10ppm 12pF 0°C ~ 85°C
7M40000183 40 MHz ±10ppm 15pF -10°C ~ 85°C
7M40070006 40 MHz ±20ppm 8pF -20°C ~ 70°C
7M40070007 40 MHz ±10ppm 10pF -20°C ~ 70°C
7M40070020 40 MHz ±7ppm 11.5pF -20°C ~ 85°C
7M40070041 40 MHz ±20ppm 12pF -40°C ~ 85°C
7M40090012 40 MHz ±7ppm 11pF -20°C ~ 90°C
7M48000003 48 MHz ±10ppm 12pF -20°C ~ 70°C
7M48000014 48 MHz ±30ppm 18pF -30°C ~ 85°C
7M48000050 48 MHz ±20ppm 10pF -20°C ~ 70°C
7M48000158 48 MHz ±20ppm 12pF -40°C ~ 85°C
7M48020003 48 MHz ±30ppm 10pF -40°C ~ 85°C
7M48070001 48 MHz ±30ppm 18pF -20°C ~ 70°C
7M48070004 48 MHz ±10ppm 18pF -20°C ~ 70°C
7M48070016 48 MHz ±10ppm 10pF -20°C ~ 70°C
7M48072001 48 MHz ±20ppm 8pF -40°C ~ 85°C
7M48072002 48 MHz ±10ppm 8pF -40°C ~ 85°C
7M48077002 48 MHz ±20ppm 18pF -40°C ~ 85°C
7M49170001 49.152 MHz ±15ppm 10pF -40°C ~ 85°C
7M49172001 49.152 MHz ±7ppm 9pF -40°C ~ 105°C
7M50020001 50 MHz ±15ppm 16pF -40°C ~ 85°C
7M50070003 50 MHz ±30ppm 12pF -20°C ~ 70°C
7M50070006 50 MHz ±15ppm 16pF -20°C ~ 70°C
7M50070012 50 MHz ±10ppm 19pF -10°C ~ 85°C
7M50070013 50 MHz ±15ppm 19pF -40°C ~ 85°C
7M50070014 50 MHz ±15ppm 19pF -40°C ~ 105°C
7M50070021 50 MHz ±15ppm 10pF -40°C ~ 85°C
7M50070032 50 MHz ±10ppm 18pF -40°C ~ 85°C
7M50072001 50 MHz ±7ppm 9pF -40°C ~ 105°C
7M54000006 54 MHz ±15ppm 19pF -30°C ~ 100°C
7M54000007 54 MHz ±12ppm 19pF -30°C ~ 85°C
7M54070002 54 MHz ±15ppm 19pF -30°C ~ 85°C
7M54070004 54 MHz ±13ppm 19pF -40°C ~ 85°C
7M54070008 54 MHz ±15ppm 19pF -10°C ~ 85°C
7M54072001 54 MHz ±20ppm 8pF -40°C ~ 85°C
7M54072002 54 MHz ±12ppm 8pF -40°C ~ 85°C
7MA1400014 114.285 MHz ±100ppm 18pF -
7MA1470002 114.285 MHz ±20ppm 18pF -40°C ~ 85°C
7MA1472001 114.285 MHz ±100ppm 18pF -40°C ~ 85°C


7V陶瓷面系列


料号 频率 精度 负载电容 工业温度
7V10080005 10 MHz ±20ppm 8pF -40°C ~ 85°C
7V12000001 12 MHz ±20ppm 18pF -20°C ~ 70°C
7V12000002 12 MHz ±30ppm 20pF -10°C ~ 70°C
7V12000005 12 MHz ±10ppm 10pF -10°C ~ 70°C
7V12000008 12 MHz ±20ppm 10pF -20°C ~ 70°C
7V12000011 12 MHz ±20ppm 12pF -20°C ~ 70°C
7V12000015 12 MHz ±10ppm 12pF -40°C ~ 85°C
7V12000019 12 MHz ±20ppm 8pF -20°C ~ 85°C
7V12080026 12 MHz ±15ppm 8pF -10°C ~ 85°C
7V12200001 12.288 MHz ±30ppm 12pF -40°C ~ 85°C
7V12270001 12.288 MHz ±20ppm 8pF -40°C ~ 85°C
7V13000003 13 MHz ±20ppm 18pF -40°C ~ 85°C
7V13000004 13 MHz ±20ppm 18pF -40°C ~ 85°C
7V16000001 16 MHz ±10ppm 9pF -20°C ~ 70°C
7V16000009 16 MHz ±30ppm 10pF -20°C ~ 70°C
7V16030001 16 MHz ±10ppm 12pF -10°C ~ 85°C
7V19280001 19.2 MHz ±30ppm 8pF -10°C ~ 70°C
7V20070001 20 MHz ±10ppm 12pF -20°C ~ 85°C
7V20070003 20 MHz ±10ppm 12pF -20°C ~ 85°C
7V20070004 20 MHz ±30ppm 18pF -20°C ~ 70°C
7V24000002 24 MHz ±30ppm 8pF -20°C ~ 70°C
7V24000005 24 MHz ±10ppm 9pF -20°C ~ 70°C
7V24000007 24 MHz ±30ppm 10pF -10°C ~ 70°C
7V24000014 24 MHz ±20ppm 10pF -10°C ~ 70°C
7V24000026 24 MHz ±30ppm 12pF -40°C ~ 85°C
7V24000028 24 MHz ±20ppm 8pF -10°C ~ 70°C
7V24070002 24 MHz ±10ppm 10pF -20°C ~ 85°C
7V24070005 24 MHz ±30ppm 12pF -20°C ~ 70°C
7V24077001 24 MHz ±10ppm 10pF -20°C ~ 85°C
7V24077004 24 MHz ±10ppm 9pF -40°C ~ 85°C
7V24077005 24 MHz ±30ppm 18pF -40°C ~ 85°C
7V24080005 24 MHz ±20ppm 18pF -40°C ~ 85°C
7V24080028 24 MHz ±15ppm 8pF -10°C ~ 85°C
7V24090003 24 MHz ±10ppm 12pF 0°C ~ 85°C
7V24580003 24.576 MHz ±30ppm 8pF -10°C ~ 70°C
7V25000002 25 MHz ±30ppm 9pF -40°C ~ 85°C
7V25000005 25 MHz ±30ppm 18pF -20°C ~ 75°C
7V25000007 25 MHz ±30ppm 20pF -20°C ~ 70°C
7V25000008 25 MHz ±30ppm 18pF -20°C ~ 70°C
7V25000012 25 MHz ±20ppm 12pF -20°C ~ 70°C
7V25000013 25 MHz ±30ppm 18pF -40°C ~ 85°C
7V25000016 25 MHz ±25ppm 20pF -20°C ~ 70°C
7V25000025 25 MHz ±10ppm 18pF -40°C ~ 85°C
7V25000026 25 MHz ±10ppm 10pF -20°C ~ 70°C
7V25000031 25 MHz ±20ppm 16pF -20°C ~ 70°C
7V25020001 25 MHz ±30ppm 18pF -20°C ~ 70°C
7V25020004 25 MHz ±30ppm 18pF 0°C ~ 70°C
7V25070001 25 MHz ±10ppm 18pF 0°C ~ 60°C
7V25070003 25 MHz ±30ppm 12pF -20°C ~ 70°C
7V25080008 25 MHz ±20ppm 18pF -40°C ~ 85°C
7V25080015 25 MHz ±30ppm 8pF -10°C ~ 70°C
7V25080035 25 MHz ±15ppm 18pF -10°C ~ 85°C
7V26000001 26 MHz ±10ppm 10pF -30°C ~ 75°C
7V26000014 26 MHz ±10ppm 9pF -25°C ~ 70°C
7V26000018 26 MHz ±10ppm 11pF -20°C ~ 75°C
7V26000028 26 MHz ±10ppm 7.5pF -20°C ~ 70°C
7V26000056 26 MHz ±10ppm 9pF -20°C ~ 75°C
7V26070007 26 MHz ±20ppm 10pF -20°C ~ 70°C
7V27000002 27 MHz ±30ppm 8pF -20°C ~ 70°C
7V27000012 27 MHz ±30ppm 12pF -20°C ~ 70°C
7V27020001 27 MHz ±30ppm 12pF -20°C ~ 70°C
7V27070004 27 MHz ±10ppm 18pF 0°C ~ 85°C
7V27080001 27 MHz ±15ppm 8pF -10°C ~ 85°C
7V27080010 27 MHz ±30ppm 8pF -10°C ~ 70°C
7V30000001 30 MHz ±30ppm 20pF -20°C ~ 70°C
7V30080003 30 MHz ±20ppm 18pF -40°C ~ 85°C
7V30080004 30 MHz ±30ppm 8pF -10°C ~ 70°C
7V31280001 31.25 MHz ±20ppm 12pF -40°C ~ 85°C
7V32000002 32 MHz ±10ppm 9pF -20°C ~ 70°C
7V32000034 32 MHz ±10ppm 12pF -20°C ~ 70°C
7V32090003 32 MHz ±8ppm 16pF -20°C ~ 85°C
7V50070003 50 MHz ±20ppm 19pF -40°C ~ 85°C
7V54070002 54 MHz ±15ppm 19pF -10°C ~ 70°C
7V54070003 54 MHz ±15ppm 19pF -40°C ~ 110°C
7V54070005 54 MHz ±15ppm 19pF -30°C ~ 85°C
7V54070006 54 MHz ±15ppm 19pF -0°C ~ 85°C


AM宽温晶振系列

料号 频率 精度 负载电容 工业温度
AM10000001 10 MHz ±10ppm 10pF -40°C ~ 125°C
AM12000001 12 MHz ±30ppm 12pF -40°C ~ 85°C
AM16000006 16 MHz ±30ppm 12pF -40°C ~ 125°C
AM16070006 16 MHz - 10pF -40°C ~ 125°C
AM24070001 24 MHz ±30ppm 12pF -40°C ~ 85°C
AM25070002 25 MHz ±15ppm 16pF -40°C ~ 125°C
AM25090001 25 MHz ±10ppm 10pF -40°C ~ 125°C
AM26000008 26 MHz ±10ppm 8pF -40°C ~ 85°C
AM26060001 26 MHz ±7ppm 8pF -40°C ~ 85°C
AM27070601 27 MHz ±20ppm 12pF -40°C ~ 105°C
AM48070004 48 MHz ±10ppm 4.7pF -40°C ~ 85°C

晶振的偏差主要有三个因素要考虑：生产公差,温度及生命周期,可以根据一些智能终端产品的使用年限与工作条件（温度）来考虑,7M系列和7V系列的30MHz,负载电容12PF,±10ppm精度其频率范围覆盖10MHz到64MHz,具有超高精度,小负载电容,-40°C到+85°C的宽范围工作温度和可靠的稳定度等特性。可以很好的满足无线收发模块系统的设计。

此文关键字： TXC晶振 晶振 NDK晶振

相关资讯

同类文章排行

最新资讯文章

    您的浏览历史

      正在加载...
    晶振用途 批发中心 技术与服务 成功案例 客户见证 加科资讯 网站地图
    版权所有
    公司地址：深圳市宝安区宝民一路123号3号楼13F
    联系电话：0755-33533774
    传 真： 0755-33533774 电子邮箱：jiakedz@163.com
    技术支持：牛商网络
    备案号： 粤ICP备14062413号

    百度统计 CNZZ

    Baidu
    map
